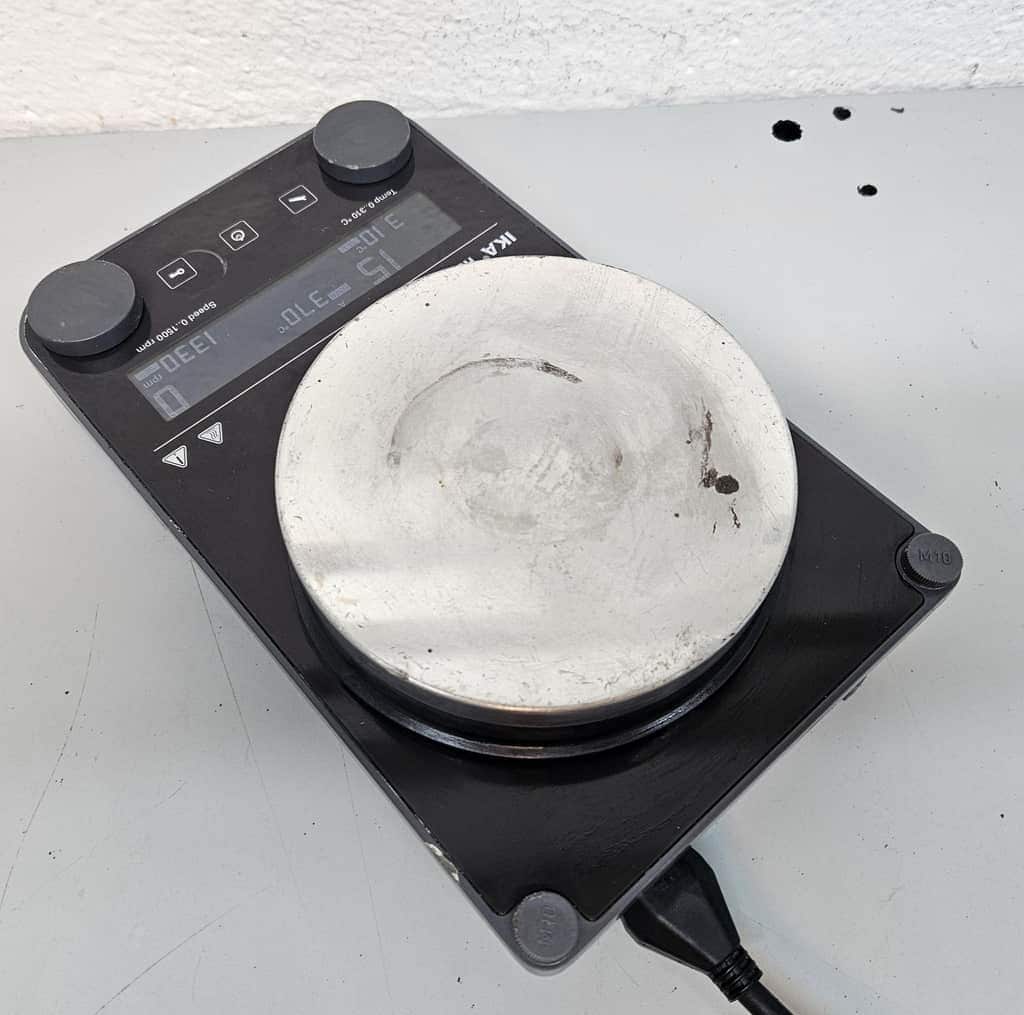

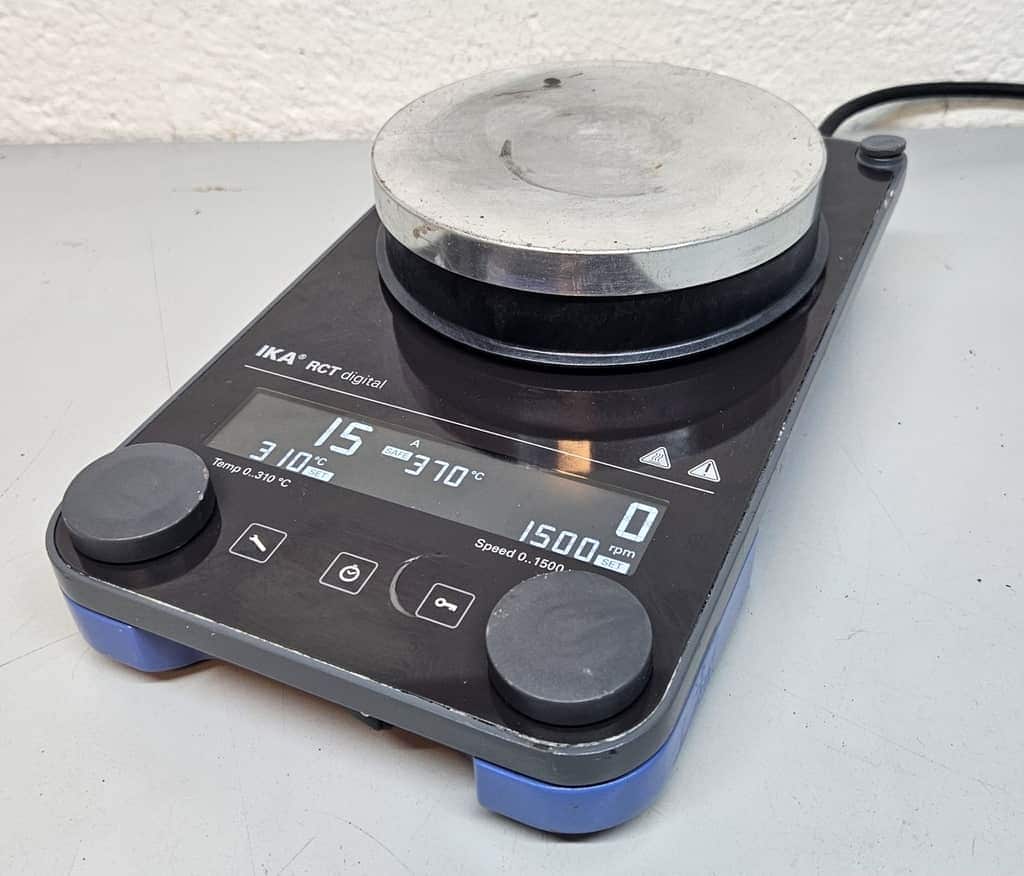

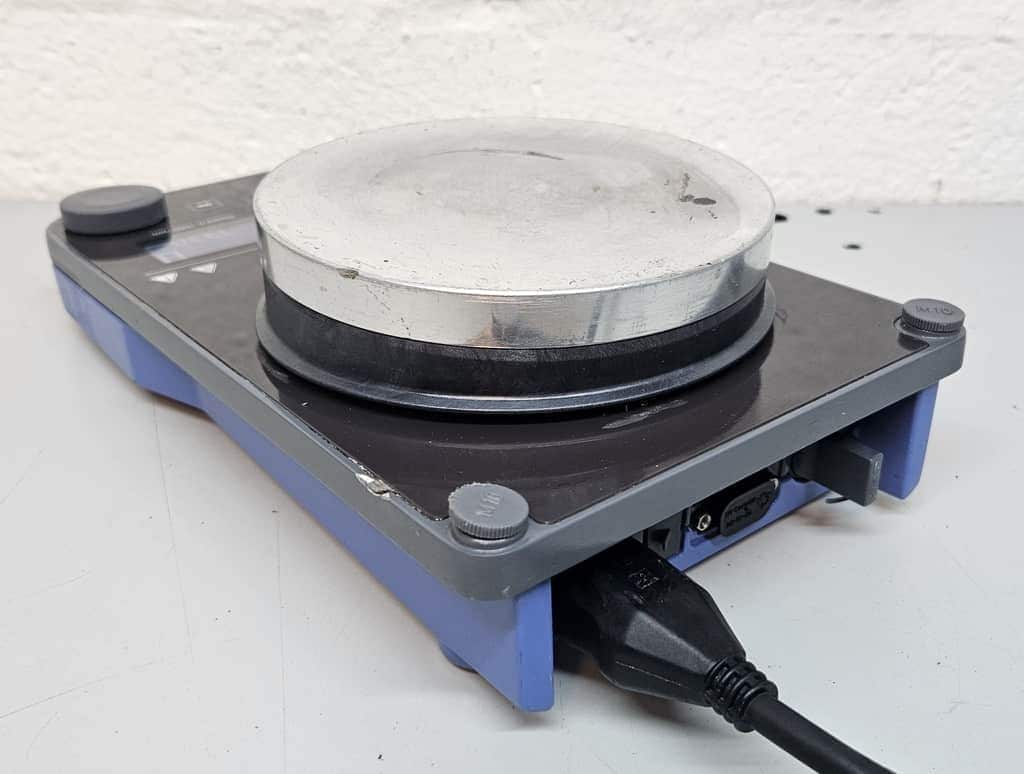

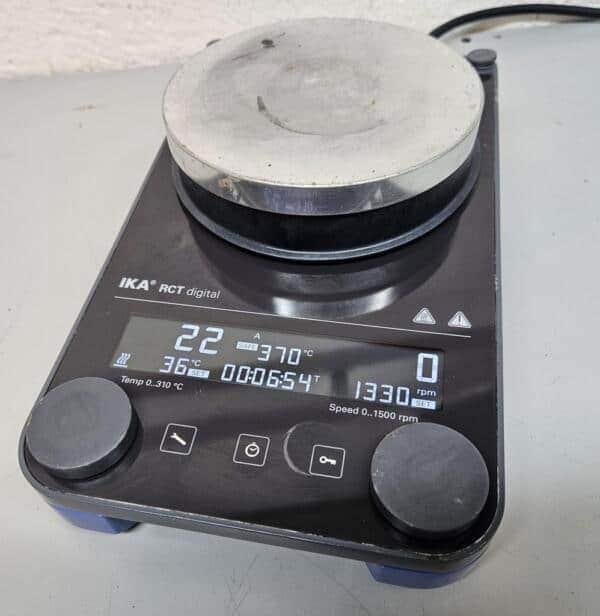

IKA RCT DIGITAL Verwarmingsplaat met Magneetroerder

IKA Plate RCT digital magneetroerder + verw. 20l

Met verwarming, digitaal instelbare temperatuur en toerental
Volume tot 20 liter (H2O)
Temperatuur van verwarmingsplaat 0 – 310°C
Optie aansluiting thermometer ETS-D5 voor nauwkeurige temperatuurregeling medium
Gepolijst aluminium verwarmingsplaat voor optimale warmteoverdracht
Verbeterde magneetveld voor roervlo
Toerental 50 – 1500 rpm
Diameter opzetplaat 135 mm
Afmetingen (lxbxh) 160 x 270 x 85 mm
Gewicht 2,4 kg

Number of stirring positions 1
Stirring quantity max. per stirring position (H2O) 20 l
Motor rating output 9 W
Direction of rotation right / left
Speed display set-value LCD
Speed display actual-value LCD
Speed control Turning knob
Speed range 50 – 1500 rpm
Setting accuracy speed 10 rpm
Stirring bar length 30 – 80 mm
Self-heating of the set-up plate by max. stirring (RT:22°C/duration:1h) 13 +K
Heat output 600 W
Temperature display set-value LCD
Temperature display actual-value LCD
Temperature unit °C / °F
Heating temperature range Room temp. + device self heating – 310 °C
Heat control Turning knob
Temperature setting range 0 – 310 °C
Temperature setting resolution of heating plate 1 K
Connection for ext. temperature sensor PT1000, ETS-D5, ETS-D6
Temperature setting resolution of medium 1 K
Adjustable safety circuit 50 – 370 °C
Set-up plate material Aluminium alloy
Set-up plate dimensions Ø 135 mm
Automatic reverse rotation yes
Intermittend mode yes
Viscosity trend measurement yes
Timer yes
Sensor in medium detection (Error 5) yes
Speed deviation (no load,nominal voltage, at 1500rpm + 25 °C) 2 ±%
Heating rate (1l H2O in h2500) 6.5 K/min
Heat control accuracy of heating plate (at 100°C) 5 ±K
Heat control accuracy with ext. PT1000 (500ml H2O in 600ml beaker,40mm stirring bar,600rpm,50°C) 0.5 ±K
Heat control accuracy with ETS-D5 (500ml H2O in 600ml beaker,40mm stirring bar,600rpm,50°C) 0.5 ±K
Heat control accuracy with ETS-D6 (500ml H2O in 600ml beaker,40mm stirring bar,600rpm,50°C) 0.2 ±K
Dimensions (W x H x D) 160 x 85 x 270 mm
Weight 2.4 kg
Permissible ambient temperature 5 – 40 °C
Permissible relative humidity 80 %
Protection class according to DIN EN 60529 IP 42
RS 232 interface yes
USB interface yes
Voltage 220 – 230 / 115 / 100 V
Frequency 50/60 Hz
Power input 650 W
Power input standby 1.6 W

geleverd als afgebeeld.
